Assembly Instructions
PECk-O-MATIC ASSEMBLY INSTRUCTIONS
Verify all contents of your PECk-O-MATIC Demand Feeder kit. It should contain the following:
Review the pictures of the four Regulator-Disks. Review its openings and recommended feed to use with each Regulator-Disk.

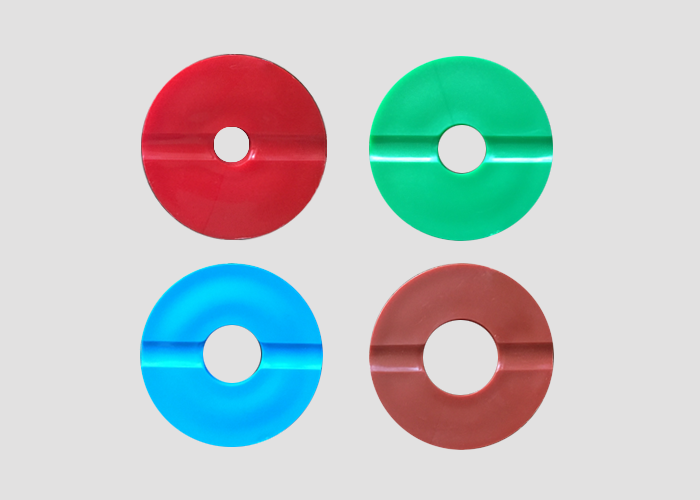

Four Regulator-Disks
Based on your feed and recommended Regulator-Disk opening,select one Regulator-Disk to use with your feed. Note: If you find our recommended opening too small or too large, change to another disk. You can also make your own disk with your desired opening to use with PECk-O-MATIC

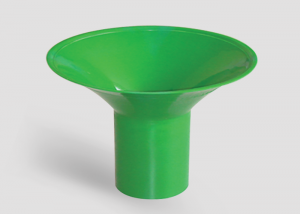

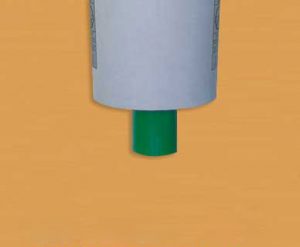

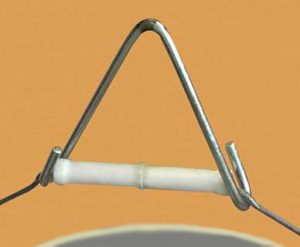

Securely hang your bucket using the Bucket-Hanger so that the bottom of the bucket is at least 14 inch above floor level and insert the tube end of the Feeder-Funnel from inside the bucket. When properly inserted,this Feeder-Funnel should seat tight against the inside wall of the bucket with the entire tube end of the funnel sticking out through the bottom hole.

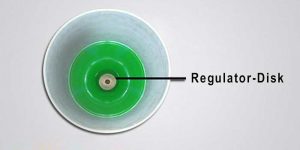

Place the Regulator-Disk you selected at the funnel opening.

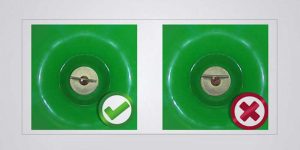

Insert the long end of the Trigger-Rod from inside and position it at the center of the Regulator-Disk opening.
Insert the Catch-Dish from the long end of the Trigger-Rod and lock it at desired height using Catch-Dish-Lock by lightly pressing together two open ends, pass the Trigger-Rod thru the holes, and release.
To test your feeder setup, put two cups of feed into the bucket while keeping the Trigger-Rod somewhat at the center of the Regulator-Disk. Then wiggle Catch-Dish to make the Trigger-Rod oscillate and see small quantity of feed is dropping. Change the Regulator-Disk to increase/decrease quantity of the released feed. (See instruction below to change the Regulator-Disk).
To train your birds, put one cup of feed in the Catch-Dish and see how quickly they learn.
Instruction to change Regulator-Disk
To change the Regulator-Disk, remove the Catch-Dish-Lock and Catch-Dish and pull out the Trigger-Rod. Repeat Step 6, 7 and 8 with the newly selected Regulator-Disk.
Instructions to use with smaller bucket
You can use PECk-O-MATIC kit with smaller bucket if you skillfully and carefully cut the Feeder-Funnel to fit inside your smaller bucket.
